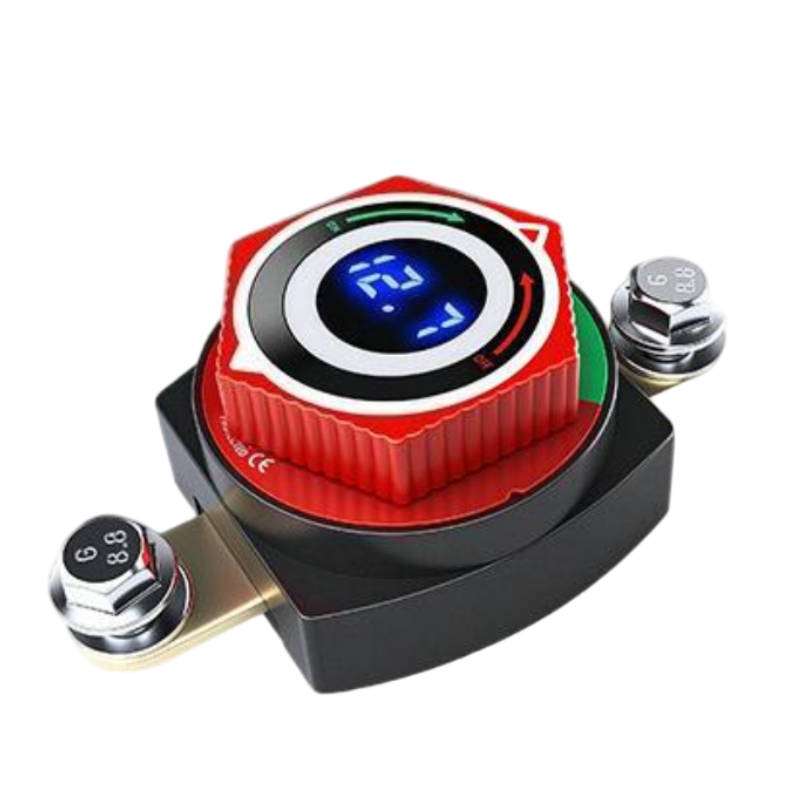

Features : The battery connection can be quickly switched on and off via a simple knob operation. It is also equipped with a high-definition LED digital display that can display the voltage in real time (range DC5-80V). It has leakage protection function, flame retardant and heat resistant (using flame retardant nylon 66 shell), and easy installation.
Material and Structure : Key components are made of brass, which is sturdy, durable and highly conductive. The terminals for monitoring and displaying voltage are built into the switch, making wiring simple and safe.
Operation method : Rotate the handle 90 degrees clockwise to switch the switch indicator to the 'On' position, power on and voltage displayed; rotate it 90 degrees counterclockwise to switch to the 'Off' position, power off and voltage display off.
Application scenarios : Suitable for automobiles, RVs and other vehicle models, providing on/off control and voltage monitoring for batteries to ensure electrical safety.
Operating parameters : DC5-80V; Continuous current 250A at DC12V; Withstand current 300A for 30 minutes; Instantaneous current 2000A.
