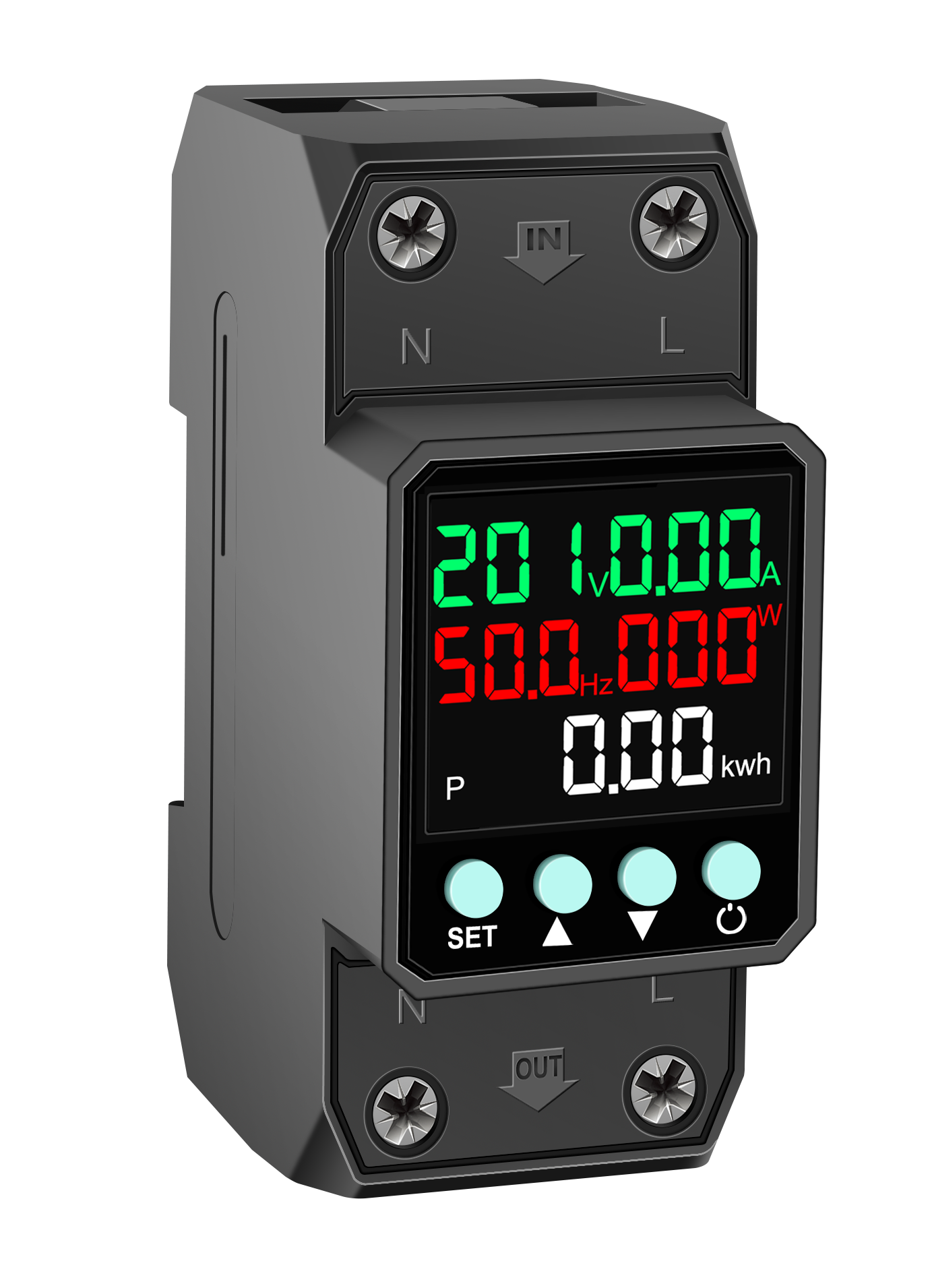

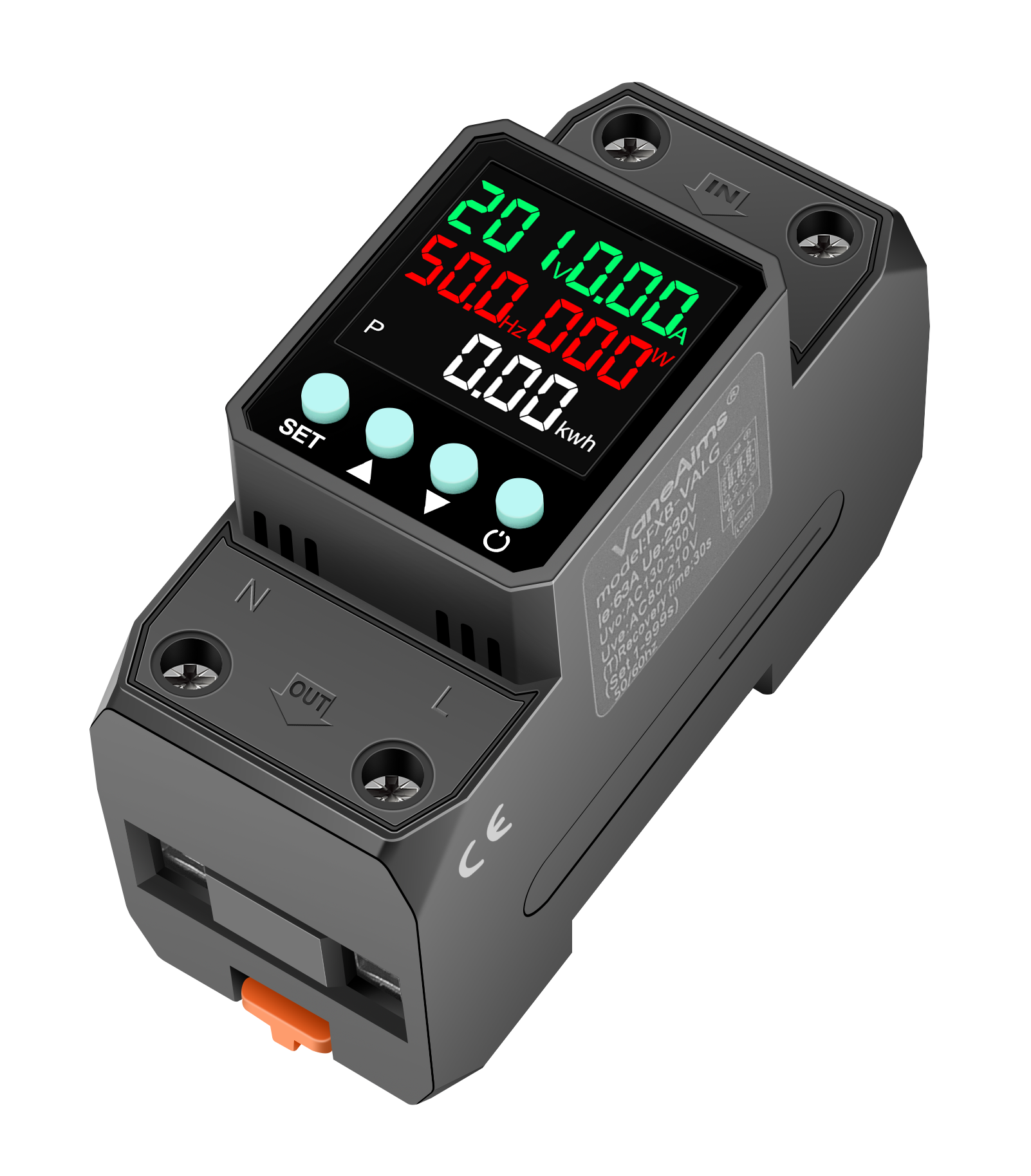

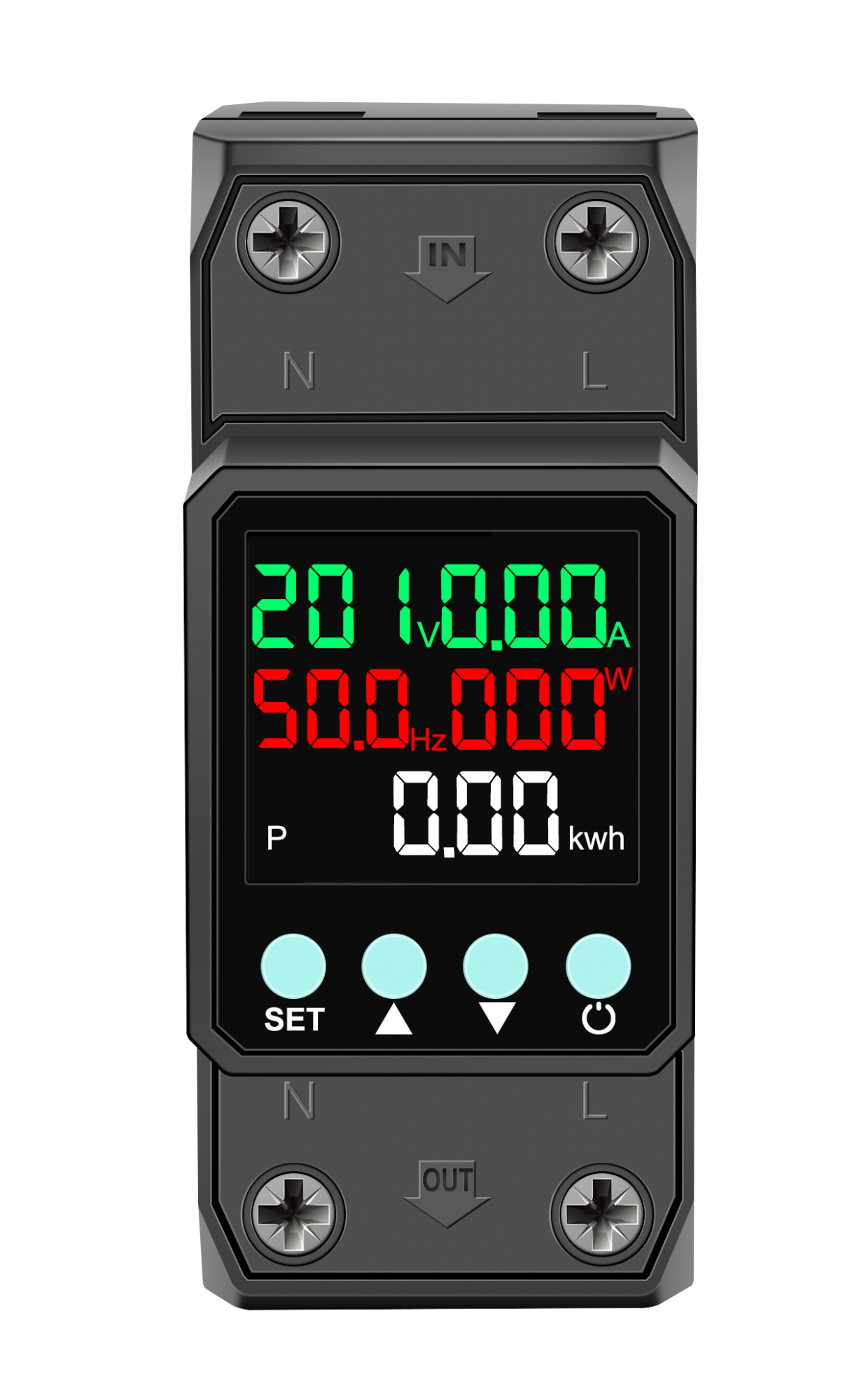

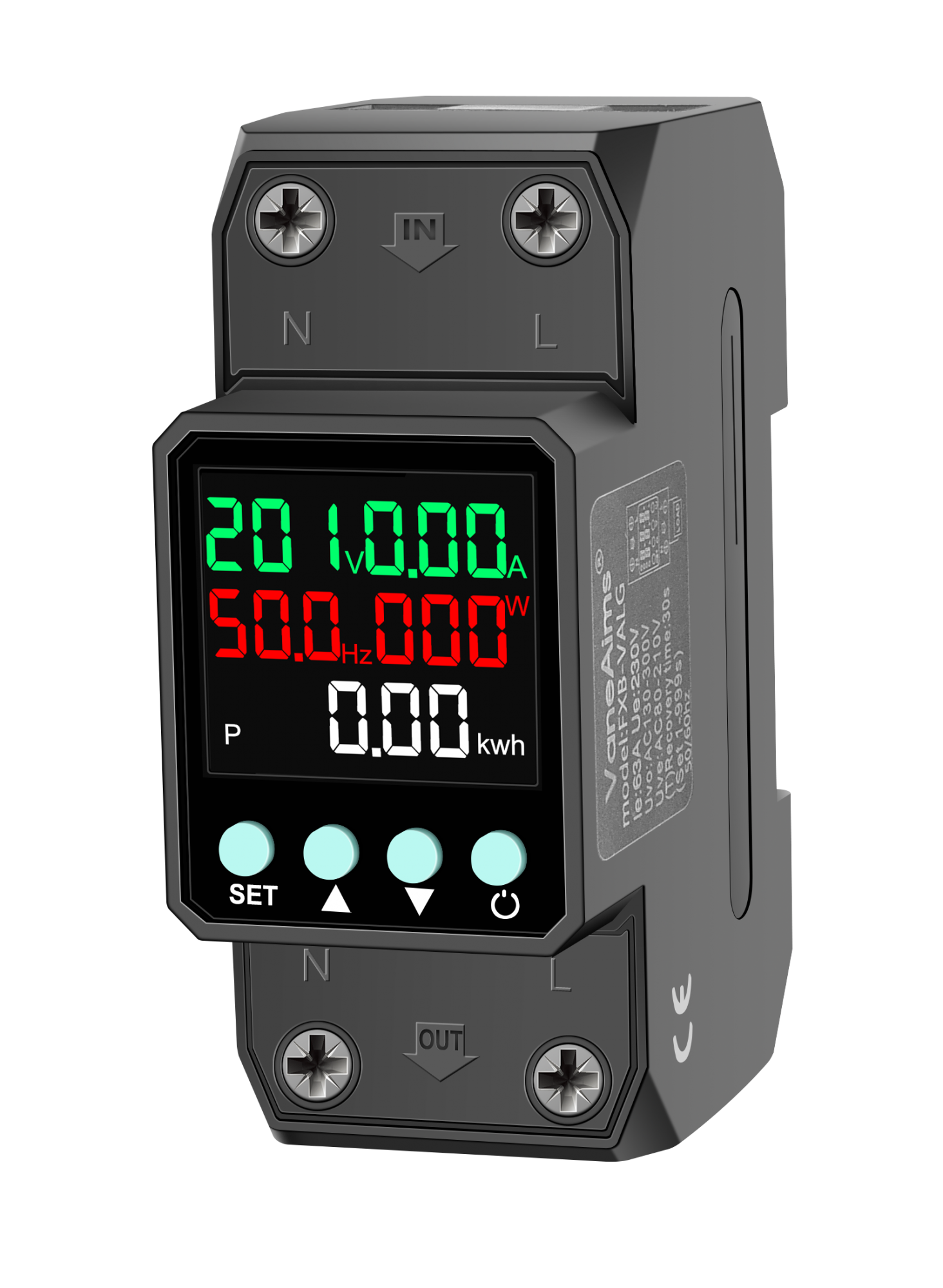

FXB-VA5+1-G

  • Rated current： 40A/63A/80A
  • Rated voltage： AC 220V
  • Protection function： Overvoltage protection; undervoltage protection; overcurrent protection; power display; energy display

  • Parameters
  • Rated current： 40A/63A/80A
  • Rated voltage： AC 220V
  • Protection function： Overvoltage protection; undervoltage protection; overcurrent protection; power display; energy display
  • Protection functions : It has overvoltage, undervoltage and overcurrent protection, and can cut off the power supply instantly to prevent damage to home appliances due to voltage and current faults; it can also prevent surges and protect the circuit, and is suitable for power protection in dormitory and other scenarios.
  • Performance and Structure : Built-in 63A magnetic latching relay, capable of withstanding high current surges without burning out; flame-retardant housing, supports 35mm DIN rail mounting, and can be installed in standard distribution boxes.
  • Display and Functions : Displays voltage, current, frequency, power, and power consumption in one display; features overcurrent counting, preset power levels, fast power-off protection, password setting (factory default 112), and automatic recovery, deeply optimizing equipment safety and management efficiency.
  • Technical parameters                                              illustrate
    Power terminalsN,L
    Rated power supply voltageAC 220V
    Rated frequency50/60Hz
    Overvoltage setting rangeAC240-300V
    Undervoltage setting rangeAC140-230V
    Voltage hysteresis5V
    Overvoltage trip delay0.5s
    voltage accuracy<1%
    Maximum operating phase voltage300V
    Maximum operating current40A/63A/80A/100A
    Altitude≤2000m
    Delay time5-300s
    Permissible relative humidity≤50% at 40℃ (no condensation)
    Ambient temperature-25℃~+55℃
    size81*36*66mm
