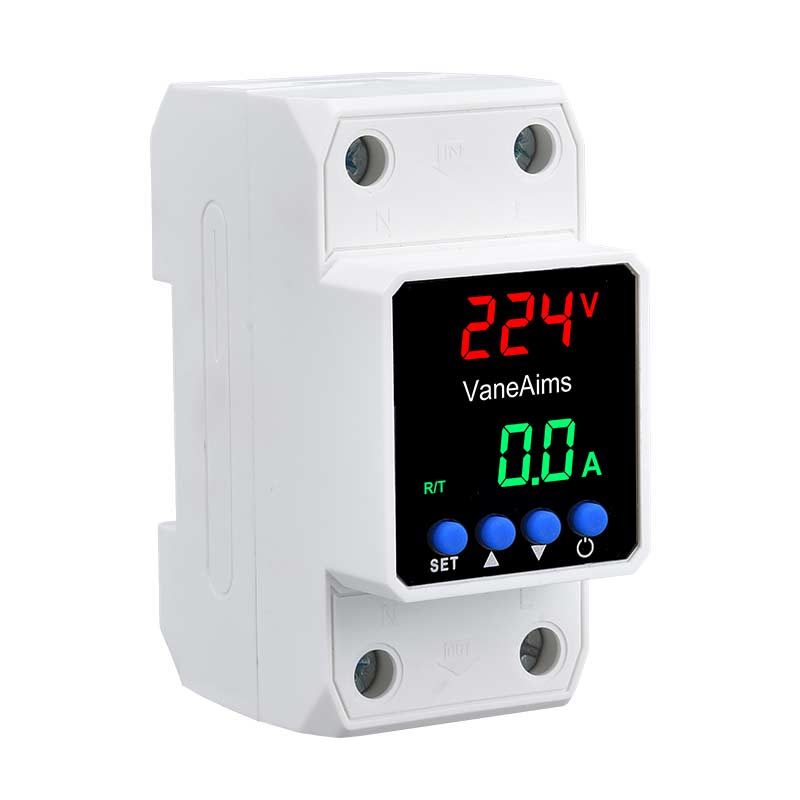

FXB-VALG100A Single Phase Protector

  • Model Number： FXB-VALG-100A
  • Rated current： 100A
  • Rated voltage： 220V
  • Protection function： Overvoltage and undervoltage protection; Overcurrent protection

  • Parameters
  • Model Number： FXB-VALG-100A
  • Rated current： 100A
  • Rated voltage： 220V
  • Protection function： Overvoltage and undervoltage protection; Overcurrent protection

  •   Customized panel logos are available upon request.

  • Front panel description

  • Indicator
    • >V: Overvoltage indicator
    • >A: Overcurrent indicator
    • POWER: Normal operation indicator light

  • button
    • M: Menu Selection
    • ▲: Number +/Ascending
    • ▼: Number - / Decrease
    • On/Off: Equipment switch

  •  Dimensions

  • Wiring diagram : The terminal blocks include L (live wire) and N (neutral wire), and the load terminal (LOAD) is connected as shown in the diagram.
  • Dimensions
    • Front dimensions of the equipment: 36mm (height) × 66mm (width)
    • Overall equipment depth: 49mm

  • Automatic reset adjustable voltage and current protection device

  • Voltage and current display : It can display parameters such as 220V and 63.0A, and supports automatic reset and adjustment.
  • Protection functions : It has multiple protections including overvoltage protection, overcurrent protection, undervoltage protection, phase protection, and lightning protection.

  • We can customize the panel logo brand according to customer requirements.

  • Technical data

projectparameter
Power supply terminalN、L
Rated power supply voltageAC 220V；DC 85-300V
Rated frequency40/50/60/70Hz
>V Setting rangeAC130-300V；DC130-300V
AC80-210V；DC85-210V
Voltage hysteresis5V
Overvoltage trip delay0.5s
Voltage hysteresis＜1%
Operating voltage350V
Operating current40A/63A/80A
high level≤2000m
Permissible relative humidity≤95% RH (non-condensing)
Ambient temperature-25℃~+55℃
size36*81*66mm



parameterFunction DescriptionDefault/Display ValueSet range/options
P-1Power-on delay time51S–999S
P-2Restore delay301S–999S
P-3Overvoltage setting value270130V–300V
P-4Overvoltage recovery value265125V–295V
P-5Undervoltage setting value17080V–210V
P-6Undervoltage recovery value17585V–215V
P-7Voltage trip delay0.50.1S–10S
P-8Voltage correctionReal-time voltage data-10%–+10%V
P-9Overcurrent setting value63.01A–99.9A
P10Overcurrent trip delay100.1S–10S
P11Overcurrent countOFF0–20 times
P12Current correctionReal-time current data-10%–+10%A
P13Frequency correctionReal-time frequency data-2.5%–+2.5% Hz, modification is not recommended.
P14Fast power-off protectiononon/OFF
P15Operating mode11 - Standard, 2 - Manual, 3 - Automatic
P16Automatic Resetonon/OFF
P17Switch modeonon/OFF
P18Energy saving modeOFFon/OFF
P19Password settings112000–999
