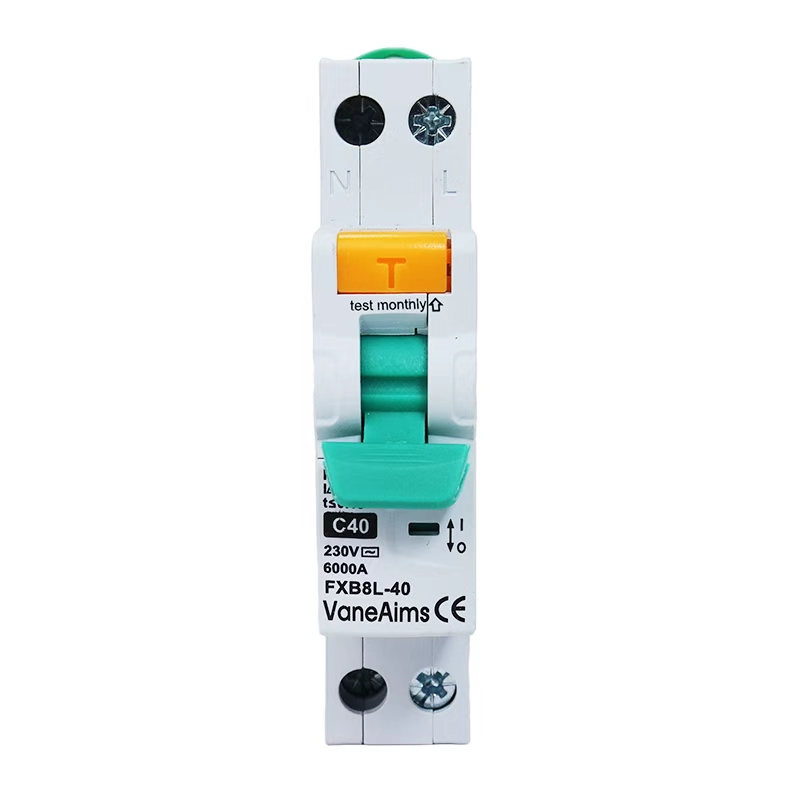

FXB8L-40

◆ FXB8L-40 residual current circuit breaker with over current is suitable for single phase residential lines with AC 50Hz or 60Hz and rated voltage of 230V. It’s used for leakage protection, overload, over current and short circuit protections of civil electrical lines. This product has a small size with high breaking capacity(6kA). The zero and live wires are cut off at the same time, and the leakage can still be protected when the live wire is reversed.

◆ This product complies with GB/T16917.1 and IEC61009-1 standards.

• Rated Current (ln): 10A/16A/20A/25A/32A/40A

• Rated Voltage (Ue): 230V AC

• Working Frequency: 50/60Hz

• Tripping Curves: Type C

• Breaking Capacity: 6kA

• Poles:1P+N

• Mechanical Life:20000 times

• Electrical Life:10000 times

• Operating Ambient

• Temperature: -35~+70℃

• Pollution Level: Level 2Protection Class: IP20
