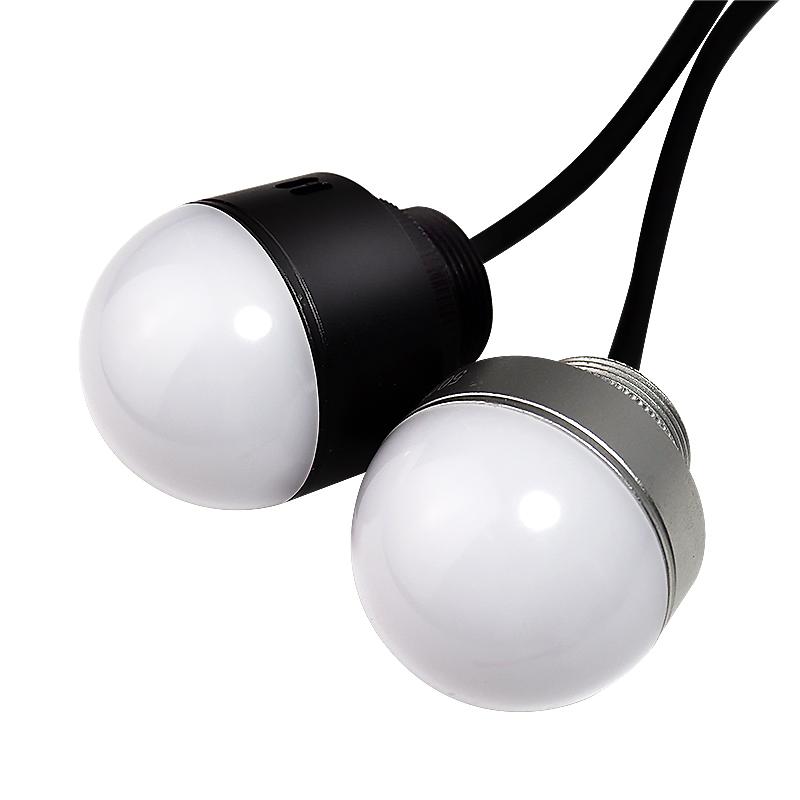

FXBDM50 Warning Light

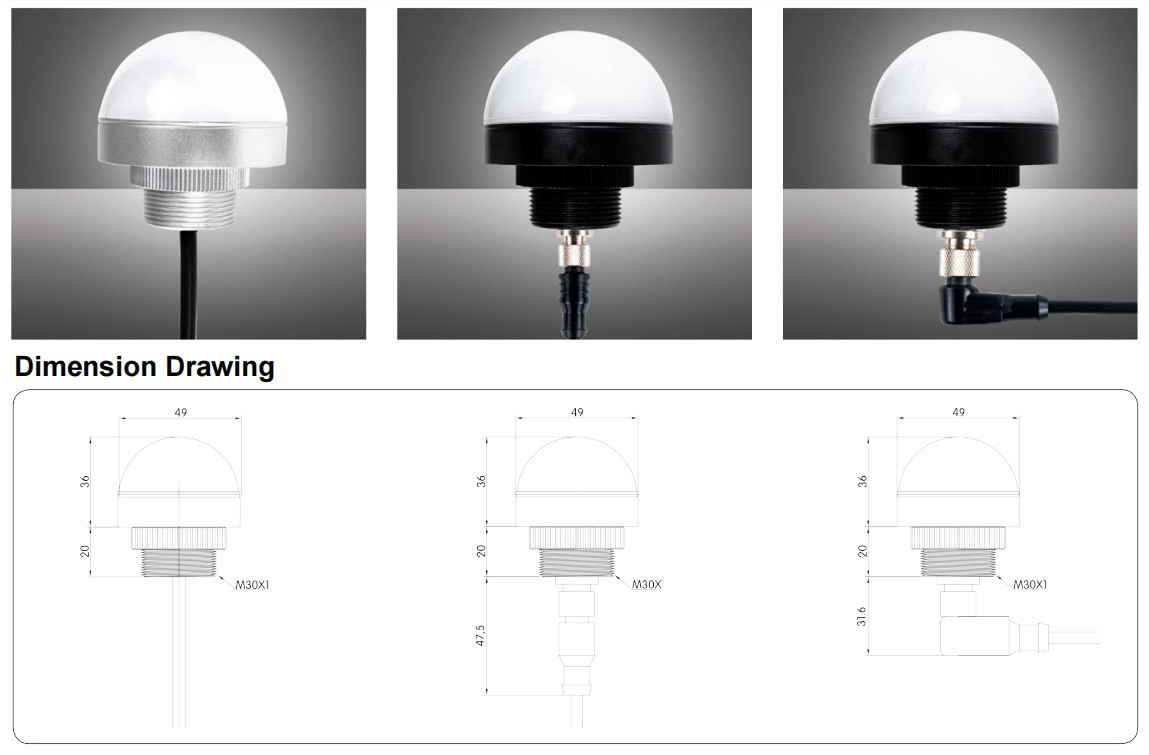

  • Installation size: 30mm
  • Color: Default: RGY ; other color combinations can be customized
  • Rated voltage: AC/DC 12V24V; Customizable AC110V 220V
  • Function: Default silver shell (T: always on; W: blinking; J: with buzzer; A: black shell)
  • Style: Default wired version (≈60 cm); customizable waterproof connector version

  • Parameters
  • Installation size: 30mm
  • Color: Default: RGY ; other color combinations can be customized
  • Rated voltage: AC/DC 12V24V; Customizable AC110V 220V
  • Function: Default silver shell (T: always on; W: blinking; J: with buzzer; A: black shell)
  • Style: Default wired version (≈60 cm); customizable waterproof connector version

I. Applicable Models

This device's warning light is suitable for automated production lines and automated equipment , and can serve as a status indicator in security inspection equipment and LED packaging equipment . It is also compatible with alarm systems, SMT equipment, CNC lathes, CNC machines, engraving machines, CNC milling machines , and mining equipment , providing reliable support for monitoring the operating status of equipment in various industrial scenarios.

II. Product Features

  1. Appearance and cost-effectiveness : The lamp body features a black design and a semi-transparent lampshade. The structure is exquisite and simple, combining aesthetics and practicality, making it extremely cost-effective among similar products.
  2. Core component guarantee : Equipped with imported light source and domestic high-quality power supply, ensuring product lifespan of more than three years from a hardware perspective, reducing the cost and trouble of frequent replacements.
  3. Installation and stability : It adopts a nut installation method, which is simple and convenient to operate. After installation, it has strong stability and can adapt to the continuous operation requirements in industrial environments.
  4. It has rich indication functions : It has the basic three-color warning light function of red, yellow and green, which can clearly distinguish the operation, warning, fault and other states of the equipment through different colors, and meet the indication needs of complex industrial scenarios.
  5. Excellent luminous effect : The exterior of the lampshade features an optical pattern design, which makes the light emission uniform and ensures that the warning status can be clearly identified around the equipment, thereby improving operational safety.

III. Technical Parameters

Parameter categoriesDetailed Explanation
Current                                         Red: 30mA; Yellow: 30mA; Green: 30mA; Buzzer: 20mA
Flash frequency63 - 65 stitches/min
Buzzer volume>85dB
Protection levelIP67 without buzzer, IP30 with buzzer
Operating temperature-20 - 45℃
Lighting lifespan50,000h
Lamp body colorBlack, Silver
Installation methodNut installation
MaterialLamp body: Aluminum alloy; Lampshade: PC; Base: Aluminum alloy



FXBDM50 Warning Light
