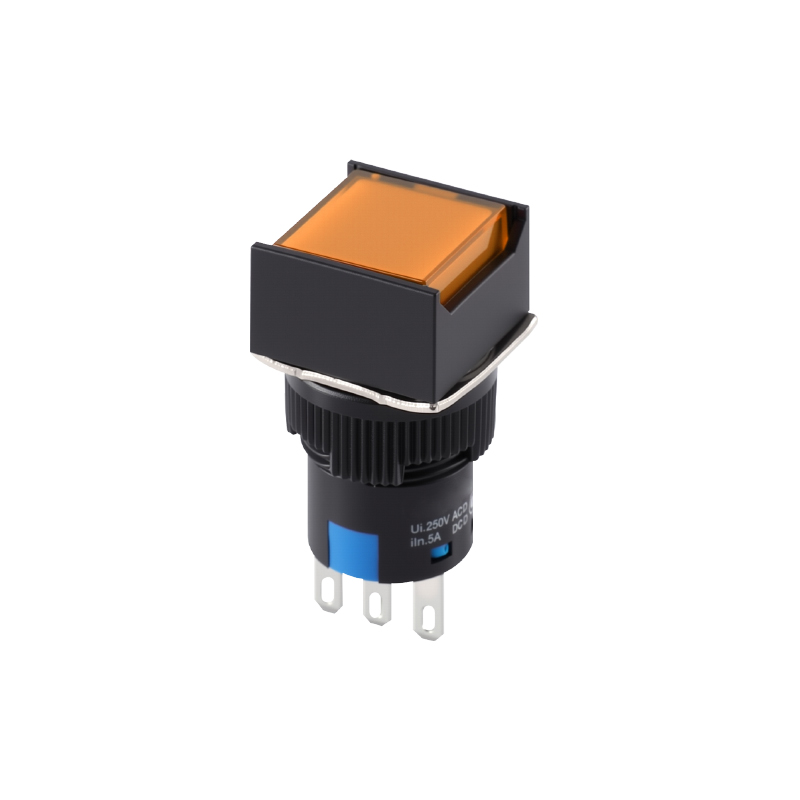

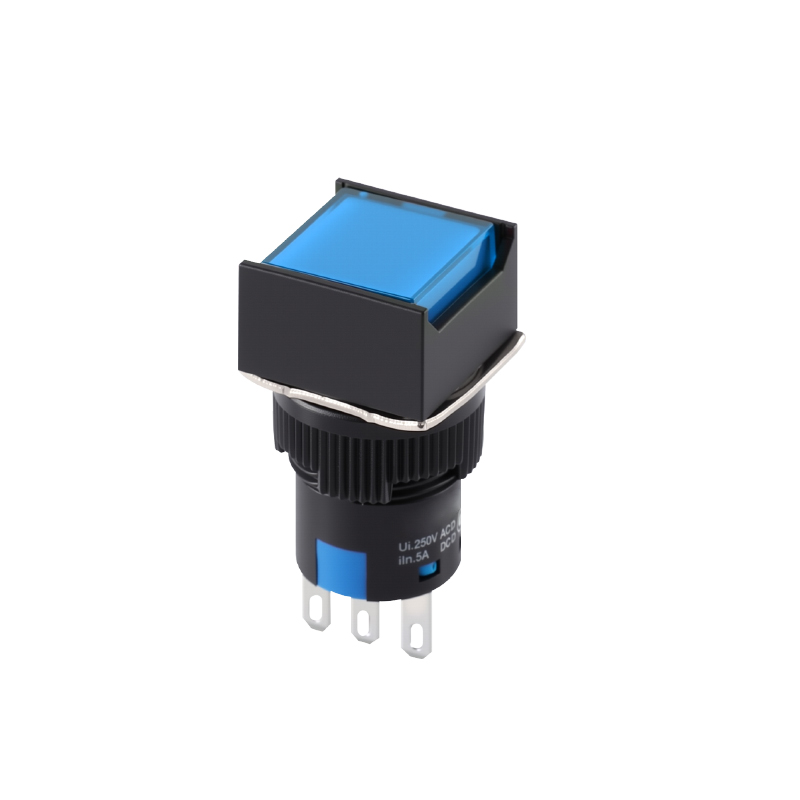

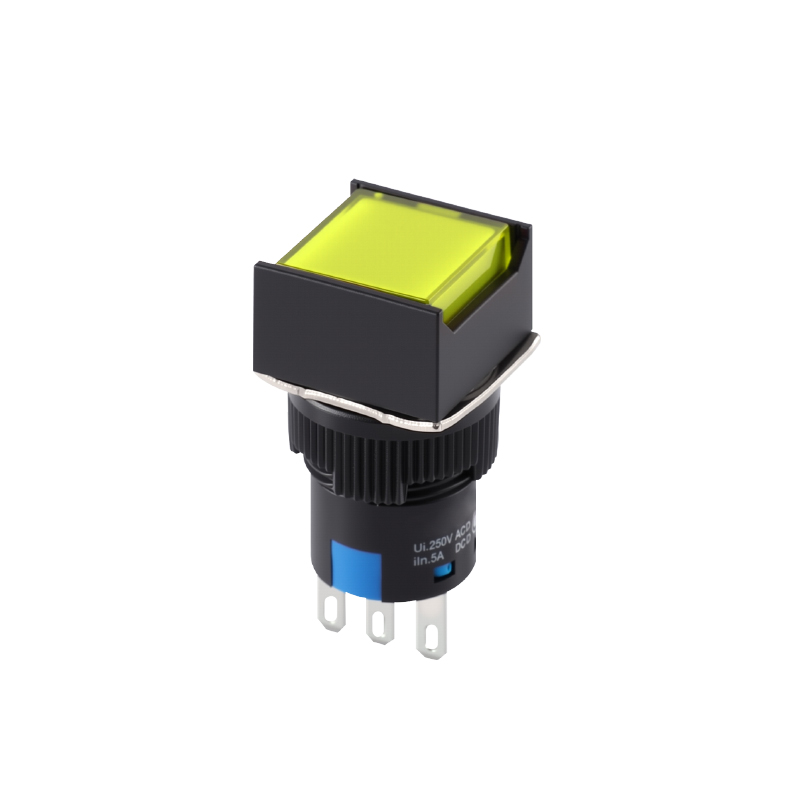

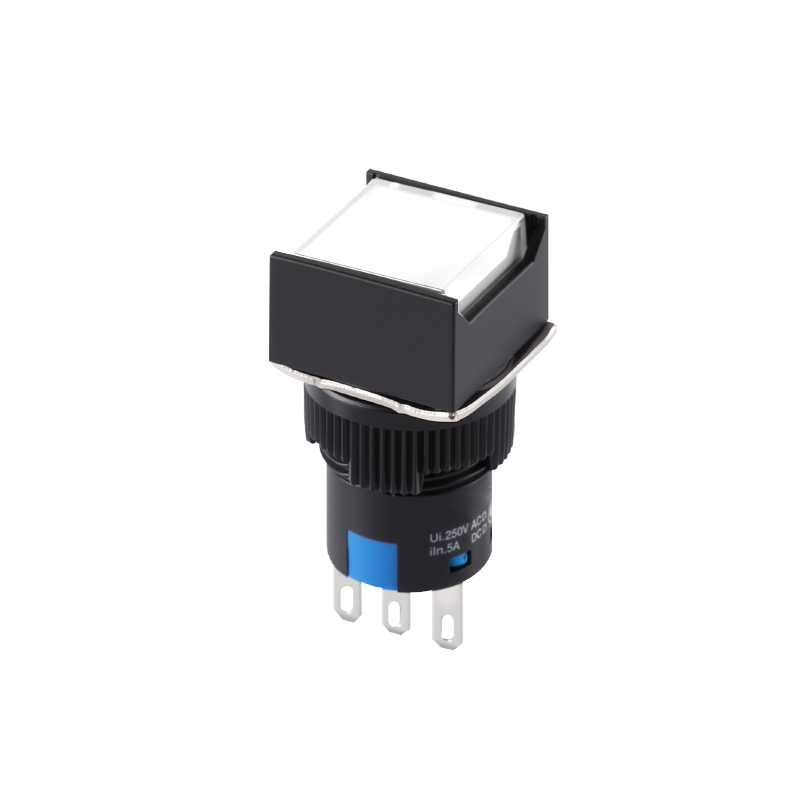

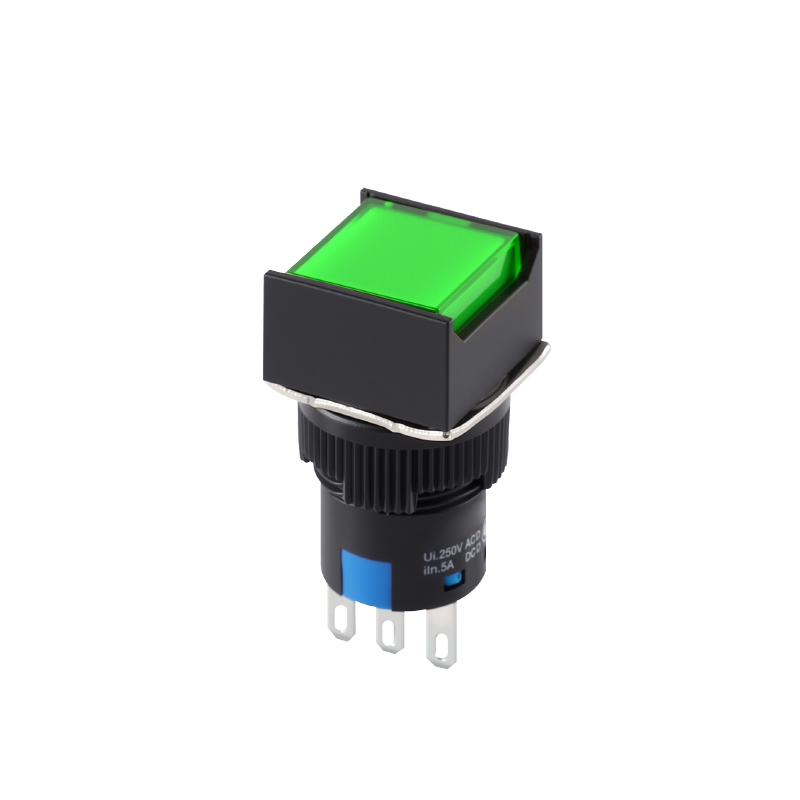

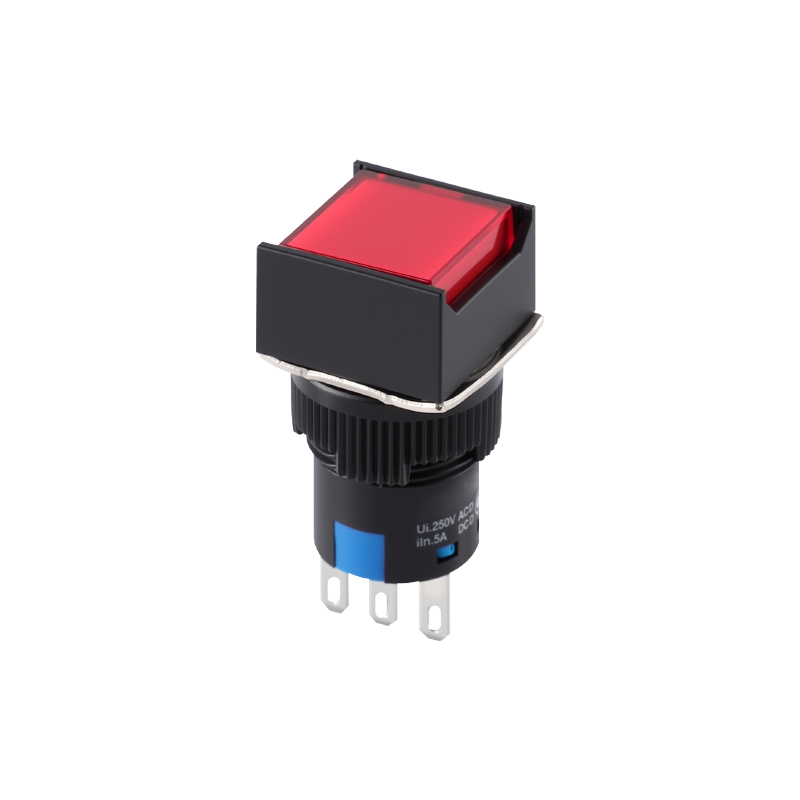

Contact capacity :
| project | Specifications/Values |
|---|---|
| Rated insulation voltage | 250V |
| Rated current | 3A |
| Minimum applicable load (reference value) | 5V AC/DC • 1mA (Usable range depends on usage conditions and load type) |
| Rated operating voltage (AC/DC) | 12V | 24V | 110V | 220V |
|---|---|---|---|---|
| AC 50/60Hz resistive load | — | — | 1.0A | 0.5A |
| AC 50/60Hz inductive load | — | — | 0.7A | 0.5A |
| DC resistive load | 1.0A | 1.0A | 0.2A | — |
| DC inductive load | 0.7A | 0.7A | 0.1A | — |
Performance specifications:
| project | Sub-item | Specifications |
|---|---|---|
| Operating ambient temperature | — | -25 to +55℃ (no freezing) |
| Storage ambient temperature | — | -30 to +80℃ (no freezing) |
| ambient humidity | — | 45–85% RH (non-condensing) |
| Contact resistance | — | Below 50mΩ (initial value) |
| Insulation resistance | — | 100MΩ and above (500V DC megohmmeter) |
| Withstand voltage | Switch section | Between charged and uncharged parts: 2,000V AC for 1 minuteInterval between opposite ends: 2,000V AC for 1 minuteInter-extreme range: 1,000V AC for 1 minuteBetween contact terminals and lamp terminals: 1,500V AC for 1 minute |
| Withstand voltage | Lighting section | Between live parts and ground: 2,000V AC for 1 minute |
| Vibration resistance | Durability | 5–55 Hz, single amplitude 0.75 mm |
| Vibration resistance | Misoperation | 5–55 Hz, single amplitude 0.75 mm |
| Impact resistance | Durability | 500m/s² |
| Impact resistance | Misoperation | 200m/s² |
| Service life | mechanical | Instantaneous type: over 1 million timesAlternating type: over 100,000 timesSelect switch: Over 250,000 cyclesKey selector switch: over 250,000 uses |
| Service life | electrical | More than 100,000 times (switching frequency 1,200 times/hour)However, the alternating type is more than 50,000 times. |
| Protection level | — | IP40、IP65（IEC 60529） |
| Terminal shape | — | 110 wing terminal for both welding and soldering |
| Action type | Rated operating voltage | Contact structure | IP40 (IEC 60529) model (ordered model) | IP40 Lighting Color Specification Code |
|---|---|---|---|---|
| instantaneous | 5V DC | SPDT | LA16Q-11D/5V | R、G、Y、A、S、JW |
| instantaneous | 5V DC | DPDT | LA16Q-22D/5V | R、G、Y、A、S、JW |
| instantaneous | 12V AC/DC | SPDT | LA16Q-11D/12V | R、G、Y、A、S、JW |
| instantaneous | 12V AC/DC | DPDT | LA16 Q -22/12V | R、G、Y、A、S、JW |
| instantaneous | 24V AC/DC | SPDT | LA16Q-11D/24V | R、G、Y、A、S、JW |
| instantaneous | 24V AC/DC | DPDT | LA16Q-22D/24V | R、G、Y、A、S、JW |
| instantaneous | 220V AC | SPDT | LA16Q-11D/220V | R、G、Y、A、S、JW |
| instantaneous | 220V AC | DPDT | LA16Q-22D/220V | R、G、Y、A、S、JW |
| Self-locking type | 5V DC | SPDT | LA16Q-11DZ/5V | R、G、Y、A、S、JW |
| Self-locking type | 5V DC | DPDT | LA16Q-22DZ/5V | R、G、Y、A、S、JW |
| Self-locking type | 12V AC/DC | SPDT | LA16Q-11DZ/12V | R、G、Y、A、S、JW |
| Self-locking type | 12V AC/DC | DPDT | LA16Q-22DZ/12V | R、G、Y、A、S、JW |
| Self-locking type | 24V AC/DC | SPDT | LA16Q-11DZ/24V | R、G、Y、A、S、JW |
| Self-locking type | 24V AC/DC | DPDT | LA16Q-22DZ/24V | R、G、Y、A、S、JW |
| Self-locking type | 220V AC | SPDT | LA16Q-11DZ/220V | R、G、Y、A、S、JW |
| Self-locking type | 220V AC | DPDT | LA16Q-22DZ/220V | R、G、Y、A、S、JW |
