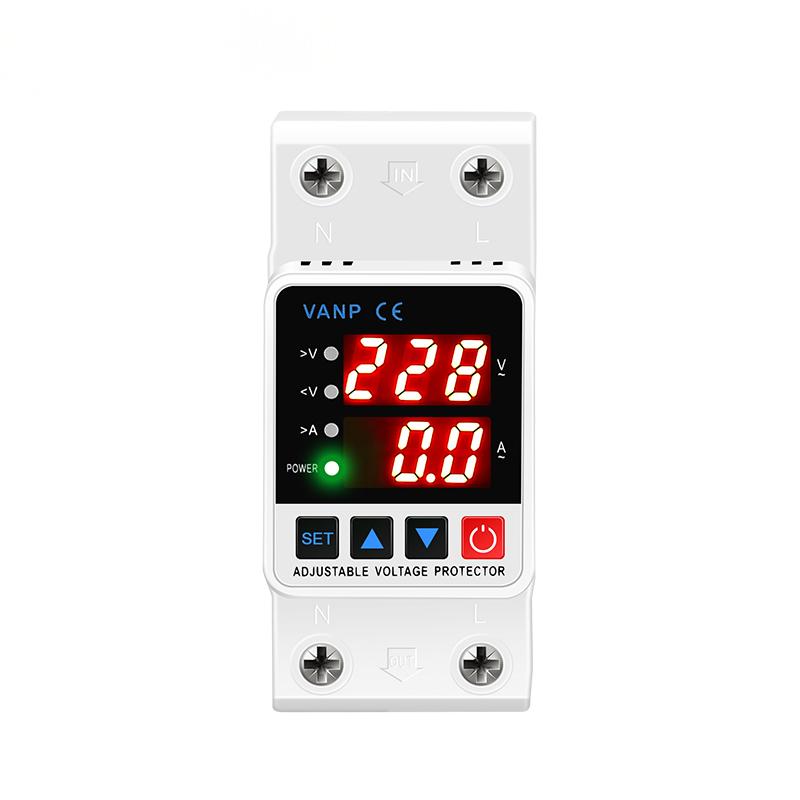

FXB-VA

1. Front Panel Description

• indicator
  • ＞V: Overvoltage indicator
  • ＜V: Undervoltage indicator
  • ＞A: Overcurrent indicator
  • POWER: Normal working indicator light
• button
  • M: Menu selection
  • ▲：Digital +/Increase
  • ▼：Number-/Descending
  • On/Off: Device switch

2. Dimensions

• Wiring diagram : The wiring terminals include L (live wire) and N (neutral wire), and the load terminal (LOAD) is connected as shown in the figure.
• Size parameters
  • Device front dimensions: 36mm (height) x 66mm (width)
  • Overall depth of the device: 49MM

3. Automatic reset adjustable voltage and current protection device

• Voltage and current display : can display parameters such as 220V, 63.0A, and supports automatic reset and adjustment.
• Protection function : with overvoltage protection, overcurrent protection, undervoltage protection,

4. Technical Data
